Description
SPECIFICATIONS
Product benefits
- Input polarity protection function
- Control up to 1200w for incandescence and up to 300w in the case of LED or low-consumption luminaires
- A mains input channel and a channel for output to the light source

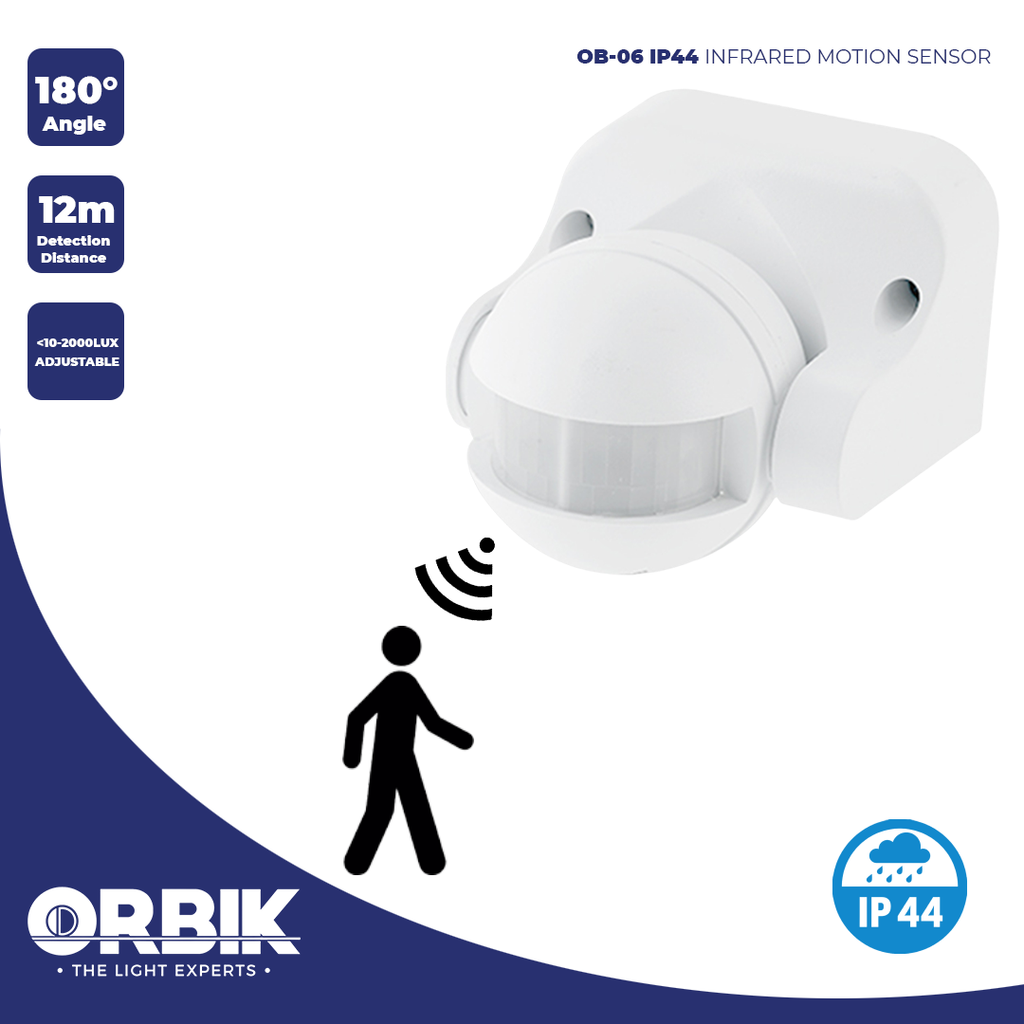

- 180° / 360° opening angle
- Self-adjusting in time from 10sec to 7mim
- Range of 12m maximum
- Adopts infrared human body induction and light control technology
- Control the load by detecting the movement of the human body
- The light in the induction area is on, and when person leaves, it will be off automatically according to the set time
- ABS Material
Area of Application
- Faced
- Hallway
- Room
- Stairway
- Bathroom
- Kitchen
- Parking
| PRODUCT CODE | OB-IB-06_1P44 | |
| DETECTION ANGLE | 180° | |
| POWER SOURCE | V / Hz | 220-240V 50/60Hz |
| RATED LOAD MAX |
Incandescent Lamp 1200W (220-240V/AV) LED 300W (220-240V/AC) |
|
| DETECTION DISTANCE | Max 12m(<24°C) | |
| TIME DELAY | 10sec ± 3sec to 7min ± 2min (adjustable) | |
| AMBIENT LIGHT | <10 - 2000lux (adjustable) | |
| INSTALLATION HEIGHT | 1.8 - 2.5m |
